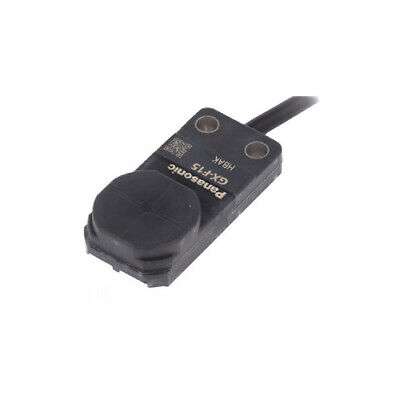

Panasonic GX-F15B-R Inductive Sensor: High-Precision Detection for Industrial Automation
Introduction
In the realm of industrial automation, the need for precise and reliable sensing solutions is paramount. The Panasonic GX-F15B-R Inductive Sensor stands out as a top-tier choice, offering exceptional performance in detecting metal objects without direct contact. This article delves into the features, applications, and technical specifications of the GX-F15B-R, highlighting its significance in modern industrial settings.
Key Features of the Panasonic GX-F15B-R Inductive Sensor
- Extended Sensing Range: The Panasonic GX-F15B-R Inductive Sensor boasts a maximum operation distance of 5 mm, with a stable sensing range up to 4.2 mm. This extended range facilitates flexible installation and reliable detection in various applications. [Source](https://industry.panasonic.com/global/en/products/fasys/sensor/proximity/number/gx-f15b-r)
- Enhanced Temperature Stability: Engineered with advanced components and design, the sensor exhibits minimal variation (±8%) in sensing range across a broad temperature spectrum (-25 to +70 ℃). This ensures consistent performance regardless of environmental temperature fluctuations. [Source](https://industry.panasonic.com/global/en/products/fasys/sensor/proximity/gx-8)
- Robust Durability: With a shock resistance of 10,000 m/s² (approximately 1,000 G) and vibration resistance tested between 10 and 500 Hz, the GX-F15B-R is built to withstand harsh industrial conditions, ensuring longevity and reliability. [Source](https://industry.panasonic.com/global/en/products/fasys/sensor/proximity/gx-8)
- Superior Environmental Resistance: The sensor features an IP68 protective construction, rendering it highly resistant to water and oil ingress. This makes it suitable for use in environments where exposure to such elements is common. [Source](https://industry.panasonic.com/global/en/products/fasys/sensor/proximity/gx-8)
- High Response Frequency: Capable of operating at response frequencies up to 250 Hz, the GX-F15B-R is adept at handling high-speed detection tasks, making it ideal for fast-paced industrial processes. [Source](https://industry.panasonic.com/global/en/products/fasys/sensor/proximity/number/gx-f15b-r)
Applications of the GX-F15B-R Inductive Sensor
The versatility of the Panasonic GX-F15B-R Inductive Sensor allows it to be employed across a wide range of industrial applications, including:
- Automated Assembly Lines: Ensuring precise positioning and detection of metal components during assembly processes.
- Conveyor Systems: Monitoring and controlling the movement of metal objects on conveyor belts to optimize workflow and prevent jams.
- Robotics: Providing feedback for robotic arms and machinery to accurately interact with metal parts, enhancing automation efficiency.
- Quality Control: Detecting the presence or absence of metal features in products, aiding in maintaining high-quality production standards.
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Operation Distance | 5 mm ±8% |
| Stable Sensing Range | 0 to 4.2 mm |
| Supply Voltage | 12 to 24 V DC (+10% / -15%) |
| Current Consumption | 15 mA or less |
| Output | NPN open-collector transistor |
| Response Frequency | 250 Hz |
| Protection Rating | IP68 |
| Operating Temperature Range | -25 to +70 ℃ |
| Shock Resistance | 10,000 m/s² (approx. 1,000 G) |
| Vibration Resistance | 10 to 500 Hz frequency, 3 mm double amplitude |
[Source](https://industry.panasonic.com/global/en/products/fasys/sensor/proximity/number/gx-f15b-r)
Installation and Maintenance Tips
To maximize the performance and lifespan of the GX-F15B-R sensor, consider the following guidelines:
- Proper Mounting: Install the sensor at an appropriate distance from the target object, within the specified sensing range, to ensure accurate detection.
- Secure Wiring: Use the recommended cable types and ensure all connections are secure to prevent signal loss or interference.
- Regular Cleaning: Keep the sensor surface clean from dust, oil, and other contaminants to maintain optimal performance.
- Periodic Testing: Regularly test the sensor’s functionality to detect any potential issues early and ensure continuous reliable operation.
Conclusion
The Panasonic GX-F15B-R Inductive Sensor exemplifies precision, durability, and versatility in industrial metal detection applications. Its advanced features and robust construction make it an invaluable component in enhancing the efficiency and reliability of automated systems. By integrating the GX-F15B-R into your industrial setup, you invest in a sensor that delivers consistent performance, even in the most challenging environments.
