Panasonic DP-101-J Sensor: Technical Specifications, Applications, and Buying Guide

What is the Panasonic DP-101-J Sensor?

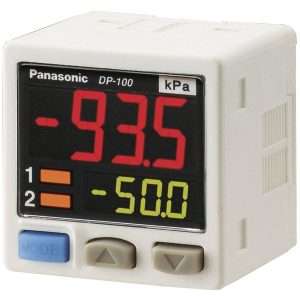

The Panasonic DP-101-J sensor is a pressure measurement device used in various industrial processes requiring pressure control, particularly in pneumatic and hydraulic systems. It stands out with its precision measurement capability, durable construction, and easy installation. With digital output features, this sensor integrates seamlessly into data processing systems.

Technical Specifications

The technical specifications of the DP-101-J sensor are as follows:

• Pressure Range: Measures between -100 kPa and 1 MPa.
• Accuracy: ±%0.5 FS (Full Scale)
• Output Type: Digital (PNP/NPN)
• Operating Temperature: Stable operation between -10°C and 50°C.
• Power Supply: 12-24V DC
• Mounting Type: Suitable for panel and surface mounting.
• Display: User-friendly digital screen.
• Dimensions: Compact design (24 x 30 x 10 mm).

Applications

The Panasonic DP-101-J sensor is highly versatile and durable, making it suitable for a wide range of applications. Key use cases include:

1. Industrial Automation: Provides pressure control in pneumatic and hydraulic systems. It is particularly used to enhance efficiency in production lines.
2. Medical Devices: Ensures reliable measurements in respiratory devices, blood pressure monitors, and other precision medical equipment.
3. Automotive Industry: Preferred for critical automotive applications such as engine pressure measurement, fuel injection systems, and air conditioning systems.
4. Food and Beverage Industry: Used in liquid filling, packaging, and production lines with hygienic sensor models.
5. Electronics Manufacturing: Provides effective solutions for vacuum systems and airflow control applications.
6. Research and Development Laboratories: Used for precision pressure measurements in testing and analysis processes.

Benefits of the DP-101-J Sensor

The DP-101-J sensor meets user needs effectively with the following benefits:

• High Precision: ±%0.5 FS accuracy ensures accurate results, even for the smallest pressure changes.
• Durability: Offers reliable performance in challenging environmental conditions thanks to its long-lasting design.
• Easy Installation: Supports quick and easy setup with compatibility for panel and surface mounting.
• Compact Design: Fits easily into tight spaces due to its small dimensions.
• Energy Efficiency: Operates with low power consumption, reducing operational costs.
• User-Friendly Interface: Its digital display provides easy monitoring and adjustment of real-time pressure values.
• Wide Application Range: Suitable for use across multiple industries.

Installation and Calibration Process

Installation Guide

• Panel or Surface Mounting: The sensor can be easily placed into slots on a panel or mounted on a surface. During panel installation, ensure the digital display is in a visible position.
• Electrical Connections: Properly connect the power supply and output terminals. Once all connections are secured, the sensor is ready for use.

Calibration Process

Calibration is essential for accurate measurements. The calibration process includes the following steps:

1. Connect the sensor to a power source.
2. Use a reference pressure device to apply correct pressure values to the sensor.
3. Adjust the values displayed on the sensor according to the reference pressure.

Purchasing Process

Price and Stock Availability

The price of the Panasonic DP-101-J sensor may vary depending on the order quantity and distributor. Contact Panasonic’s authorized distributors for current pricing and stock information.

Buying Tips

• Purchase from Authorized Distributors: Choose Panasonic’s authorized distributors to ensure product authenticity and technical support.
• Online Stores: Shop from reliable e-commerce platforms to benefit from fast delivery.
• Request a Quote: Get price advantages for bulk orders by requesting quotes from distributors.

Frequently Asked Questions (FAQs) About the DP-101-J Sensor

1. In which industries is the Panasonic DP-101-J sensor used?

It is widely used in industrial automation, medical devices, automotive, food, and electronics manufacturing sectors.

2. What is the sensor’s accuracy level?

It offers ±%0.5 FS accuracy, ensuring precise measurements.

3. Is the installation process easy?

Yes, the sensor is easy to install with its compact design and user-friendly mounting options.

4. How often should calibration be performed?

Calibration is recommended during the initial setup and at regular maintenance intervals.

5. How much does the DP-101-J sensor cost?

The price depends on the order quantity and distributor. Contact distributors for up-to-date pricing information.

6. What is the operating temperature range?

The sensor operates reliably between -10°C and 50°C.

Conclusion

The Panasonic DP-101-J sensor is an ideal solution for industrial processes, offering precision measurement capabilities, durability, and versatility. With its wide application range and user-friendly features, this sensor is a reliable choice for both small-scale projects and large industrial applications. Contact Panasonic’s authorized distributors for a smooth purchasing process.
