Panasonic DP-101-E-P-J Sensor: Features, Applications, and Benefits

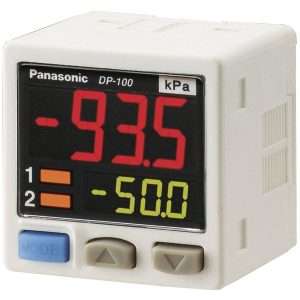

What is the Panasonic DP-101-E-P-J Sensor?

The Panasonic DP-101-E-P-J is a digital pressure sensor designed for superior performance in systems requiring pressure control. This device, capable of precise and accurate measurement over a wide pressure range, is an ideal solution for enhancing the efficiency of industrial processes and reducing operational costs.

Technical Specifications

The technical specifications of the DP-101-E-P-J sensor are as follows:

• Pressure Range: Measures from -100 kPa to 1 MPa.
• Accuracy: ±%0.5 FS
• Output Type: Digital (PNP/NPN)
• Operating Temperature: Stable operation between -10°C and 50°C.
• Power Supply: 12-24V DC
• Mounting Options: Supports panel or surface mounting.
• Dimensions: Compact design (24 x 30 x 10 mm).
• Display: Simple, user-friendly digital screen.

Applications

The Panasonic DP-101-E-P-J sensor is versatile and can be used in a variety of industrial and commercial sectors. Key application areas include:

1. Industrial Automation: Frequently used in pneumatic and hydraulic systems for pressure control. It enhances system efficiency by optimizing pressure in production lines.
2. Medical Devices: Used for precise pressure measurement in respiratory devices, blood pressure monitors, and other medical equipment.
3. Automotive Industry: Provides reliable performance in engine pressure measurements, fuel injection systems, and vehicle air conditioning systems.
4. Food and Beverage Industry: Its hygienic design-compatible models make it ideal for pressure control in production lines, especially in liquid filling and packaging processes.
5. Electronics Manufacturing: Commonly used in vacuum systems and airflow control applications.

Benefits of the Panasonic DP-101-E-P-J Sensor

The Panasonic DP-101-E-P-J sensor offers several advantages to meet users’ needs effectively:

• High Precision: Operates with ±%0.5 FS accuracy, detecting even the smallest pressure changes.
• Compact Design: Easily mountable in tight spaces due to its small size.
• Durability: Long-lasting and reliable performance even in challenging environmental conditions.
• Easy Installation: Panel or surface mounting options make integration into different systems straightforward.
• User-Friendly Display: Its digital screen allows for easy monitoring of real-time pressure values.
• Wide Operating Temperature Range: Functions reliably between -10°C and 50°C, suitable for harsh environments.
• Low Power Consumption: Operates with a 12-24V DC power supply, ensuring energy efficiency.

Installation and Calibration Process

Installation Guide

• Panel or Surface Mounting: The DP-101-E-P-J sensor can be easily integrated into your production line. During panel mounting, ensure the sensor’s digital display is in a visible location.
• Electrical Connections: Properly connect the power supply and output terminals. Once all connections are secure, the system is ready to operate.

Calibration Process

Calibration is essential for accurate measurements. Here are the steps:

1. Connect the sensor to a power source.
2. Apply correct pressure values using a reference pressure device.
3. Adjust the displayed values on the sensor according to the reference pressure.

Purchasing the DP-101-E-P-J Sensor

Price and Stock Availability

The price of the Panasonic DP-101-E-P-J sensor varies depending on the order quantity and distributor. Contact Panasonic’s authorized distributors for up-to-date pricing and stock information.

Buying Tips

• Purchase from Authorized Distributors: Ensure product authenticity by buying from Panasonic’s authorized distributors.
• Online Stores: Shop from reliable e-commerce platforms to benefit from fast delivery services.
• Request Quotes: Obtain discounts for bulk orders by requesting quotes from distributors.

Frequently Asked Questions (FAQs) About the DP-101-E-P-J Sensor

1. In which industries is it used?

It is widely used in industrial automation, medical devices, automotive, food, and electronics manufacturing sectors.

2. What is the accuracy level of the sensor?

Operates with ±%0.5 FS accuracy, ensuring high precision.

3. Is the installation process easy?

Yes, the sensor is easy to install with its compact design and user-friendly mounting options.

4. How often should calibration be performed?

Calibration is recommended during the initial setup and at regular maintenance intervals.

5. What is the operating temperature range?

The sensor operates reliably between -10°C and 50°C.

6. How much does it cost?

The price depends on the distributor and order quantity. Contact distributors for detailed information.

Conclusion

The Panasonic DP-101-E-P-J sensor provides an excellent solution for industrial applications with its high precision, compact design, and durability. With its technical specifications and broad range of applications, this sensor is a reliable choice for pressure measurement and control needs. Contact Panasonic’s authorized distributors for a smooth purchasing and installation process.
